Mockups reduce risk by turning drawings, submittals, sequencing, workmanship, and performance expectations into something the team can see, test, and correct before full production. They are most useful when treated as decision tools, not ceremonial samples.
Key takeaways:
- A mockup should answer specific questions about performance, appearance, sequencing, and workmanship.
- Include the hard details: corners, penetrations, terminations, transitions, flashings, joints, and adjacent trades.
- Test criteria should be defined before the mockup is built.
- Keep the accepted mockup available as the benchmark for production work when practical.
What a Mockup Should Prove
A facade or waterproofing mockup can verify aesthetics, material compatibility, installation sequence, tolerances, drainage, adhesion, air leakage, water resistance, and maintainability. It can also reveal coordination problems between trades that drawings alone do not make obvious. A window installer, air barrier subcontractor, mason, sheet metal crew, sealant installer, and waterproofing contractor may all touch one corner of the same opening.
The mockup should not be limited to the easiest wall area. It should include the risky details. For facade work, that may be a window head, sill, jamb, control joint, cladding transition, inside corner, outside corner, fastener pattern, and sealant joint. For waterproofing, it may be a drain, curb, penetration, inside corner, termination bar, expansion joint, and tie-in to vertical waterproofing.
Set Acceptance Criteria First
A mockup without acceptance criteria becomes a debate about preferences. The team should agree in advance on which drawings, specifications, submittals, manufacturer instructions, and test standards apply. ASTM E331 covers water penetration testing for exterior windows, curtain walls, skylights, and doors under uniform static air pressure difference, while ASTM E283 addresses laboratory air leakage rates for similar assemblies. ASTM E330 addresses structural performance under uniform static air pressure. Link the project criteria to the correct standard, not to a generic desire for the mockup to "pass." See ASTM's pages for E331 water penetration, E283 air leakage, and E330 structural performance for official scope language.
| Mockup Type | What It Helps Confirm | Typical Risk Reduced |
|---|---|---|
| Visual sample | Color, texture, joint layout, finish quality | Owner dissatisfaction and late aesthetic changes |
| Performance mockup | Air, water, structural, or movement criteria | Hidden envelope failures and untested assumptions |
| Sequencing mockup | Trade order, access, curing, protection | Rework caused by incompatible installation steps |
| Repair mockup | Patch visibility, adhesion, coating match | Unacceptable repair appearance or durability |
The Step-by-Step Mockup Process
First, define the question. Are you testing water resistance, confirming appearance, checking installer workmanship, or solving a transition detail? Second, choose a representative location or laboratory assembly. Third, include the trades that will perform the production work. Fourth, document materials, batch information where relevant, weather, substrate conditions, and installation sequence.
Fifth, inspect the mockup in stages. Do not wait until everything is covered. Sixth, test it if the contract requires testing. Seventh, document deficiencies and corrections. Eighth, approve or reject the mockup with clear notes. Ninth, preserve the approved mockup or create detailed photo records to guide production.
Specialty testing labs and building envelope consultants often describe mockup testing as a way to evaluate real-world facade behavior before full installation. UL's overview of building envelope and facade performance testing is one example of how broad the testing scope can be across curtain walls, window walls, rainscreens, metal cladding, and related assemblies.

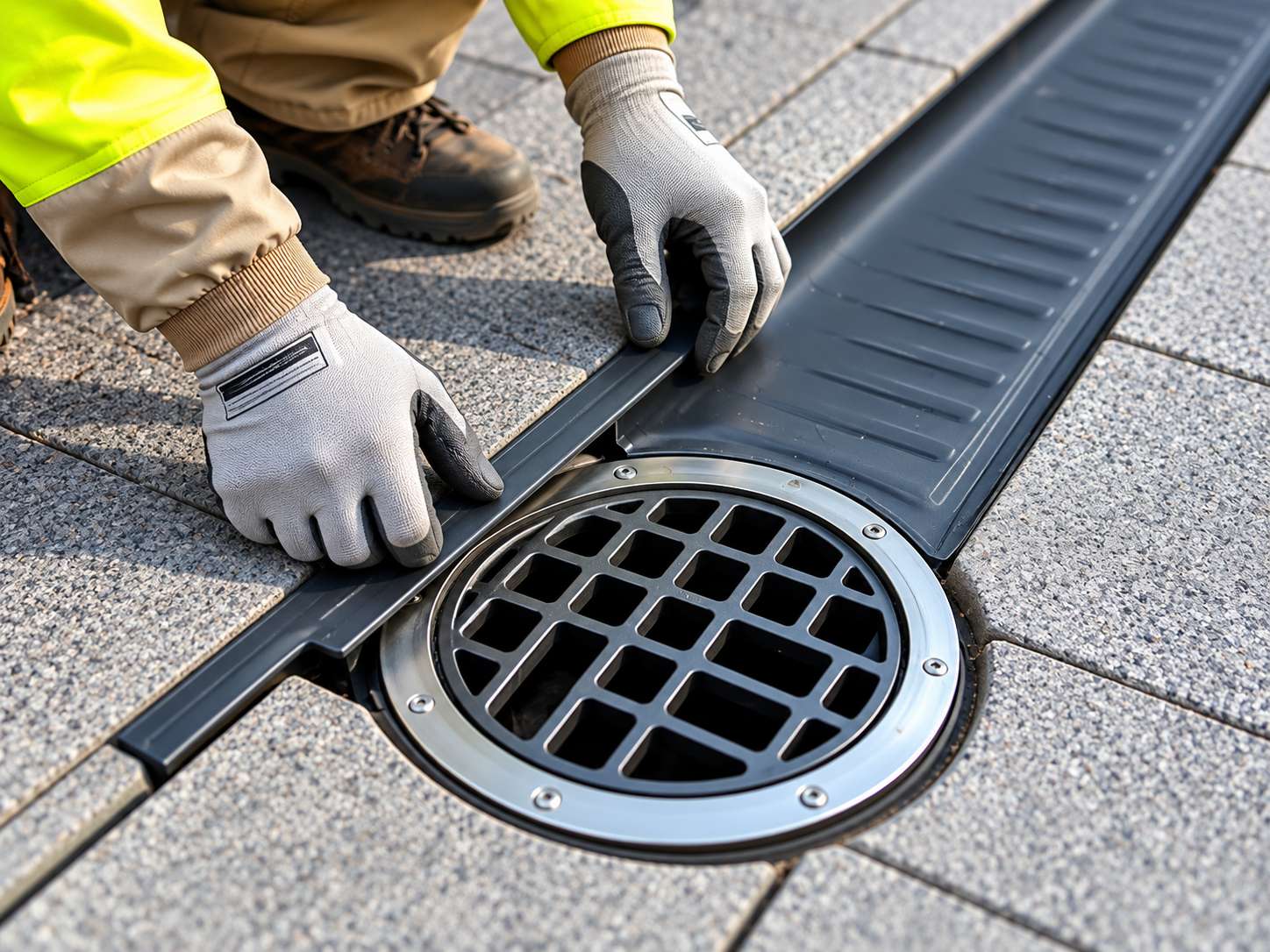

Mistakes That Make Mockups Less Useful
A common mistake is building the mockup too late. If procurement is complete and crews are already installing production work, the mockup cannot influence major details without schedule pressure. Another mistake is excluding field installers. A mockup built by a manufacturer's specialist may not reveal what the project crew will struggle to repeat.
Teams also weaken mockups when they use perfect conditions that will not exist on site. If the actual work involves tight access, irregular substrates, existing walls, balcony edges, or occupied-building constraints, the mockup should reflect those realities where possible. Historical lessons matter here. The data practices described in using historical job data to improve estimates can also inform mockup planning by identifying details that caused rework on prior projects.
Mockups and Interior Protection
Mockups are not only for exterior walls. High-abuse interiors, healthcare corridors, and school renovations can benefit from small samples that prove wall protection height, corner conditions, adhesive performance, and cleanability. The article on wall protection products for hospitals, schools, and corridors shows why early samples can prevent late product debates.
For high-risk work, mockups should also connect to safety planning. If a mockup reveals a difficult access condition, sharp material edges, awkward lifting, or poor housekeeping around wet materials, treat that as useful risk information. Lessons from incident reporting after a near miss or injury can be applied proactively: capture the hazard before it becomes an event.
Keep the Mockup Useful After Approval
Once approved, the mockup should become the production benchmark. Use it during foreman meetings, first-work inspections, owner reviews, and punch walks. If a detail changes, document the change and clarify whether the mockup is still the standard.
A mockup does not guarantee performance. It reduces uncertainty by showing the team what must be built, tested, and repeated. That makes it one of the most practical risk-control tools in facade and waterproofing work.
A Short Mockup Agenda
A focused mockup meeting should answer seven questions. What detail is being approved? Which contract documents and submittals control the work? Which trades must be present? What inspections or tests will be performed? What conditions will cause rejection? How will accepted changes be added to drawings or field instructions? Where will the mockup record live after approval? This agenda keeps the review from becoming a casual visual walk. It also helps owners and contractors distinguish between a design change, a workmanship correction, and a preference that may affect cost or schedule.
Who Should Sign Off
Mockup approval should not rest on one person unless the contract clearly says so. The designer may review aesthetics and design intent, the envelope consultant may review performance details, the manufacturer may review installation requirements, the contractor may review sequencing, and the owner may review maintainability. Document each role. Shared review reduces the chance that one approval is later interpreted too broadly.
If the mockup fails, treat the failure as useful information rather than an embarrassment. The team has found a problem while it is still contained, visible, and easier to correct than it would be across the full building.
